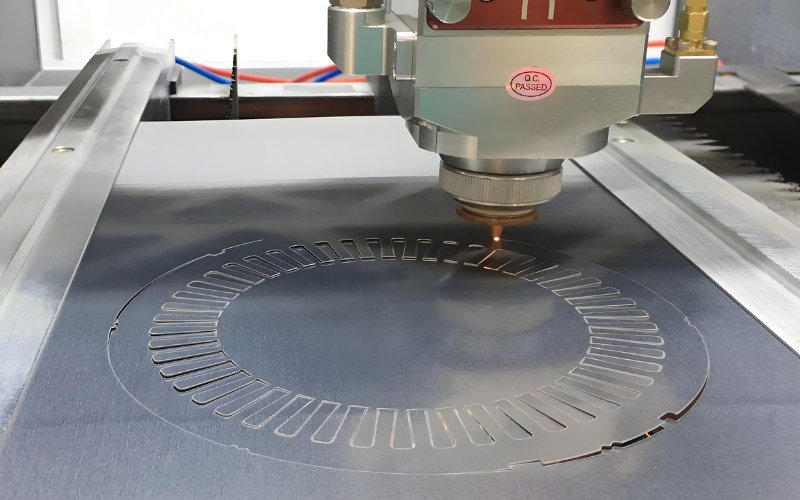

Welcome to Sino! We build the heart of electric motors. We make them stronger, faster, and better. We use a special tool called a laser to do this. A laser is a very strong and tiny beam of light. It can cut metal with amazing care. This service is called Motor Laminations Stacks Laser Cutting. It is the best way to make parts for modern motors.

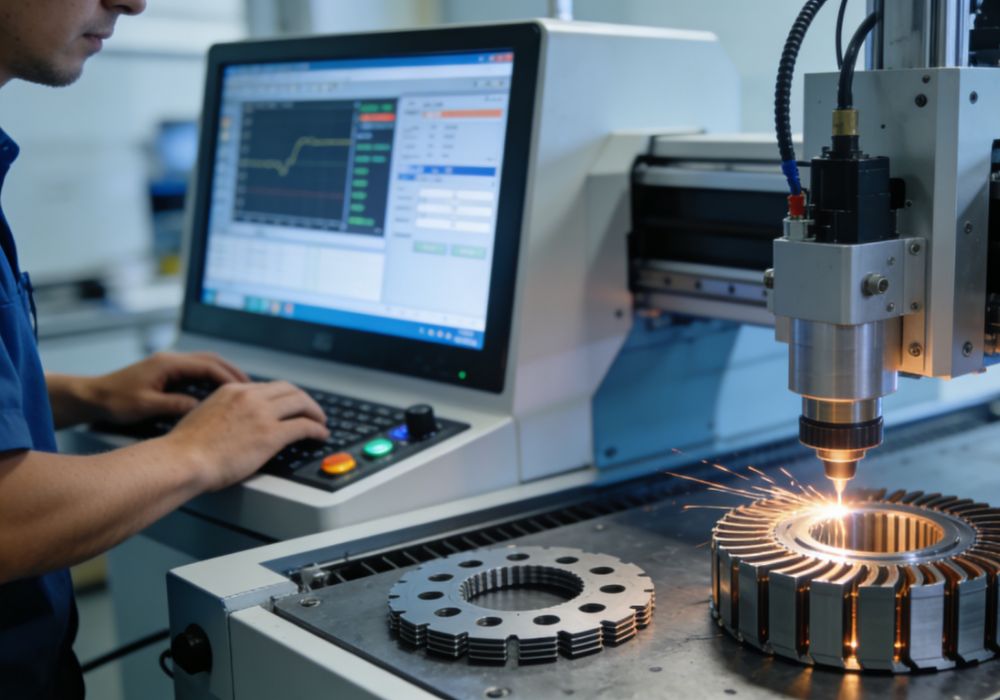

Our computer-controlled system guides the laser. It makes perfect cuts every time. This helps build motors for electric cars, robots, and even spaceships. Our work helps with energy efficiency in industrial settings and powers the world around you.
At Sino, our fiber laser technology is a modern, better way. Choosing the right manufacturing process is a critical strategic decision. The following analysis outlines the key differences between our laser cutting services and traditional stamping, helping you determine the optimal path for your specific project requirements.
| Attribute | Sino Laser Cutting Service | Traditional Stamping |
| Tooling Investment | Zero. The process is digitally driven directly from CAD files. No physical dies are required. | High. Significant upfront investment in custom-designed progressive or compound dies is necessary. |
| Lead Time for First Article | Extremely Fast. Prototypes can be produced within days of receiving a finalized design file. | Long. Can take several weeks or months for tool design, manufacturing, and validation. |
| Design Flexibility | Unlimited. Design changes are implemented instantly by modifying the CAD file, with no additional cost or delay. | Inflexible. Any design modification requires expensive and time-consuming re-tooling. |
| Geometric Complexity | High. Ideal for intricate shapes, sharp internal corners, and complex features that are difficult or impossible to stamp. | Limited. Constrained by die manufacturing limitations, punch strength, and material flow characteristics. |
| Burr Formation | Minimal to None. Optimized parameters result in clean edges, often eliminating the need for secondary deburring processes. | Variable. Burr height increases with tool wear, requiring regular maintenance and potentially costly deburring operations. |
| Material Thickness | Versatile. Highly effective for ultra-thin gauges (<0.20mm) without inducing mechanical stress. | Challenging for Thin Gauges. Risk of material distortion and high tool wear on very thin laminations. |
| Production Volume Sweet Spot | Prototyping, Low-to-Medium Volume (<10,000 units), High-Mix Low-Volume (HMLV). | High-Volume, Low-Mix Production (>10,000 units) of a stable design. |
| Cost Per Part (Low Volume) | Low. The absence of tooling amortization makes it the most cost-effective option for smaller batches. | Very High. The tooling cost must be amortized over a small number of parts, making it economically unviable. |
| Cost Per Part (High Volume) | Moderate. Consistent per-unit cost. | Very Low. Once tooling is paid for, the high speed of the process results in the lowest possible per-part cost. |
In-Depth Scenarios:
If you are developing a new motor topology, our laser cutting service is your ideal partner. You can iterate through multiple rotor and stator designs in a single week, physically test them, and refine your models without incurring any tooling costs. This drastically accelerates your development cycle and de-risks your R&D investment.
If you manufacture specialized motors for industries like medical devices, robotics, or defense, where production runs are in the hundreds or few thousands, laser cutting is the most economical and flexible solution. It allows you to offer customized solutions to your clients without the financial burden of tooling for each unique design.
Even if your end goal is high-volume stamping, our laser cutting service can act as a crucial bridge. You can use it to launch your product and begin generating revenue while your high-volume stamping dies are being manufactured. This strategy helps you capture market share faster and provides a validated design before committing to expensive hard tooling.
At Sino, our entire laser cutting philosophy is built around mitigating the effects of the cutting process on material properties. We do not simply cut steel; we engineer a thermal process to ensure the resulting lamination performs as close to the raw material’s specifications as possible.
We meticulously control every variable to minimize thermal input and maximize cut quality.
The result of this meticulous optimization is a lamination with superior edge quality, characterized by minimal roughness, virtually zero burrs, and a significantly reduced HAZ.
For applications where magnetic performance is absolutely critical, we have capabilities that utilize ultrashort pulsed lasers (picosecond and femtosecond ranges). This technology operates on the principle of “cold ablation,” where material is vaporized with minimal thermal diffusion into the workpiece.
The Benefits of Ultrashort Pulsed Laser Cutting:
To ensure complete restoration of magnetic properties, we offer a thermal annealing post-processing service. Laminations are treated in a controlled-atmosphere furnace, which relieves any stress induced during cutting and restores the material’s grain structure. Our quality assurance is embedded throughout the manufacturing process. We utilize advanced metrology tools, including optical CMMs and surface profilometers, to verify dimensional accuracy, edge quality, and burr height.
We have the best tools for the job. Our team at Sino knows how to get the most out of our technology for your precision processing needs.
| Parameter | Sino’s Capability | Why It Matters for You |
| Material Types | Silicon steel laminations (CRNGO laminations), Non-oriented electrical steels, High-frequency grades (NO10, NO35), Nickel iron core laminations, Amorphous materials. | We use the perfect metal for your motor’s needs, whether it’s for high speed or high power. Better materials mean better motors. |
| Material Thickness | We work with thin gauge materials, from a super-thin 0.1mm up to 1.0mm or more. Our Lamination thickness (0.1mm – 1mm) is very precise. | Thinner laminations are better at stopping energy loss. We can cut any thickness you need for the best results. |
| Laser Precision | Our laser’s beam diameter (50 microns) is smaller than a human hair. We use a powerful laser power (2 kW) to make clean cuts. | This tiny beam allows us to cut very detailed shapes with tight tolerances. Your parts will be perfect every time. |

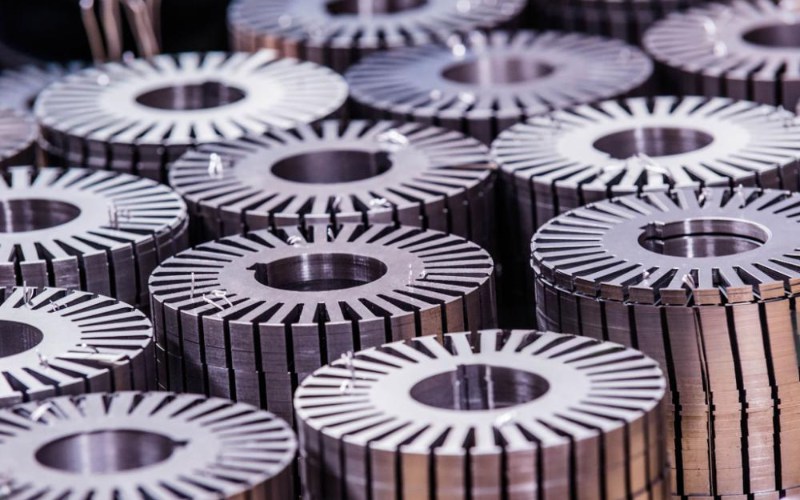

| Quality Control | We offer burr-free cuts. We do a core length measurement on every stack. Our process is ISO 9001 certification approved. | Smooth, clean edges mean your laminated stacks fit together perfectly. This gives you better performance and less noise. |
Our work at Sino touches many parts of your world. We provide parts for simple tools and for the most advanced machines on the planet.
We are a key part of the move to electric cars and bikes. We build cores for the powerful motors in luxury EVs.
Our lightweight and precise parts are perfect for airplanes and satellites, where every gram matters.
Robots need very exact motors to do their work. We provide the high-precision machinery parts they need.
We help build a greener world by making parts for wind turbines and solar power systems.
Our clean, precise parts are used in life-saving medical gear.
We can help fix old motors by making new, better parts for them, extending their life.

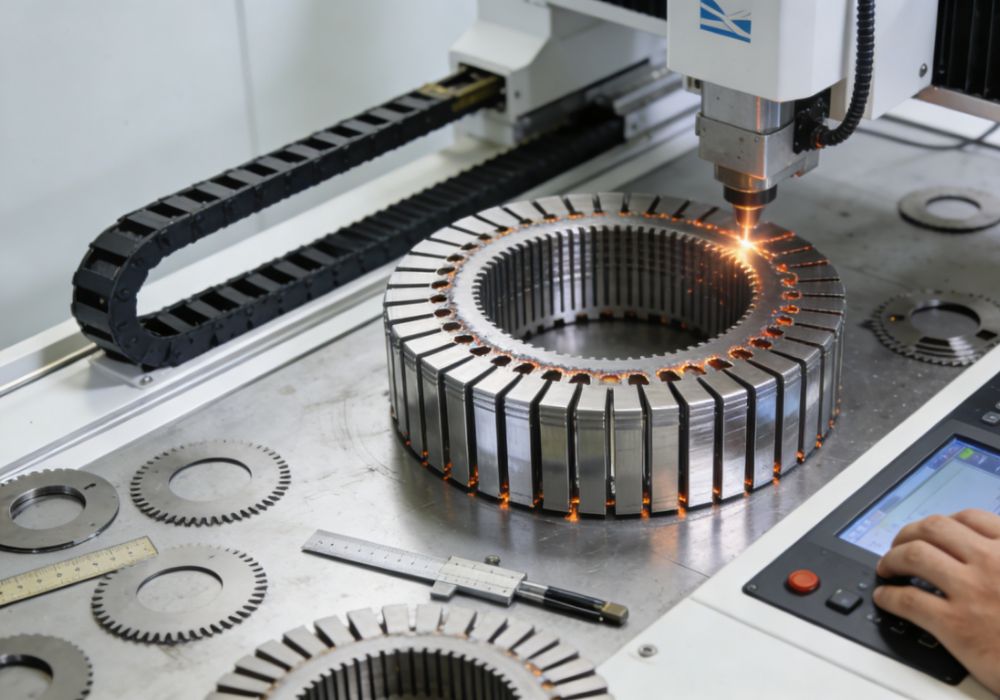

Sino is your partner for the whole project. We do more than just cut metal. We build the complete motor core for you. Our service is structured to support you seamlessly through the entire product lifecycle.
This phase is all about speed and iteration.
Once your design is finalized, we transition to production mode.
Should your product reach a volume where stamping becomes more economical, we facilitate a smooth transition.
Sino is more than a supplier; we are a strategic manufacturing partner dedicated to your success. Our advanced laser cutting service is a powerful tool designed to help you innovate faster, build better products, and compete more effectively in the global market. By combining uncompromising precision, unparalleled flexibility, deep material science expertise, and a clear economic value proposition, we provide a holistic solution for your motor and transformer lamination needs.
Are you ready to build a better motor? Do you want to unlock higher performance and efficiency for your project? The team at Sino is here to help. Let us show you how our motor lamination laser cutting service can bring your design to life. We make it easy to get started.
Contact us today for a free quote! Our team will look at your plan and help you find the best way to build your parts. With Sino, you get speed, quality, and a partner you can trust.
