CRGO Lamination Stacks Manufacturer

Get more power from your transformers with Sino CRGO Lamination Stacks. Our CRGO lamination stacks are built to reduce wasted energy. This means your machines work better and save you money. The magnetic core is the most important part of your equipment. At Sino, our Cold-Rolled Grain-Oriented (CRGO) electrical steel laminations are made to make your machines more efficient. They also help lower your long-term costs and make sure your equipment runs smoothly. Working with us means you are choosing lower energy loss that you can see. Your machines will also handle heat better and run very quietly.

Our skill with materials gives you a big advantage. You get transformers that are more efficient than required. You get motors that give more power with less heat. And you get equipment that works well for many, many years. This is the Sino promise. We deliver great performance, made with care.

Why Sino Stacks are the Best Choice

Choosing Sino for your CRGO Lamination Stacks is a smart move. Our products are made to help you succeed. Here is why our CRGO lamination stacks are a top choice for experts:

Very Low Energy Loss

We use special electrical steel. This magnetic steel, also known as silicon steel, loses very little energy. This means less energy is wasted as heat. This helps your machine run cool and saves a lot of power over time. For the best performance with the lowest energy loss, we offer CRGO laminations treated with our special PDR technology. This is a careful laser process that improves the magnetic structure of the steel. This helps to cut down on extra, unwanted energy loss.

Perfect Shape and Size

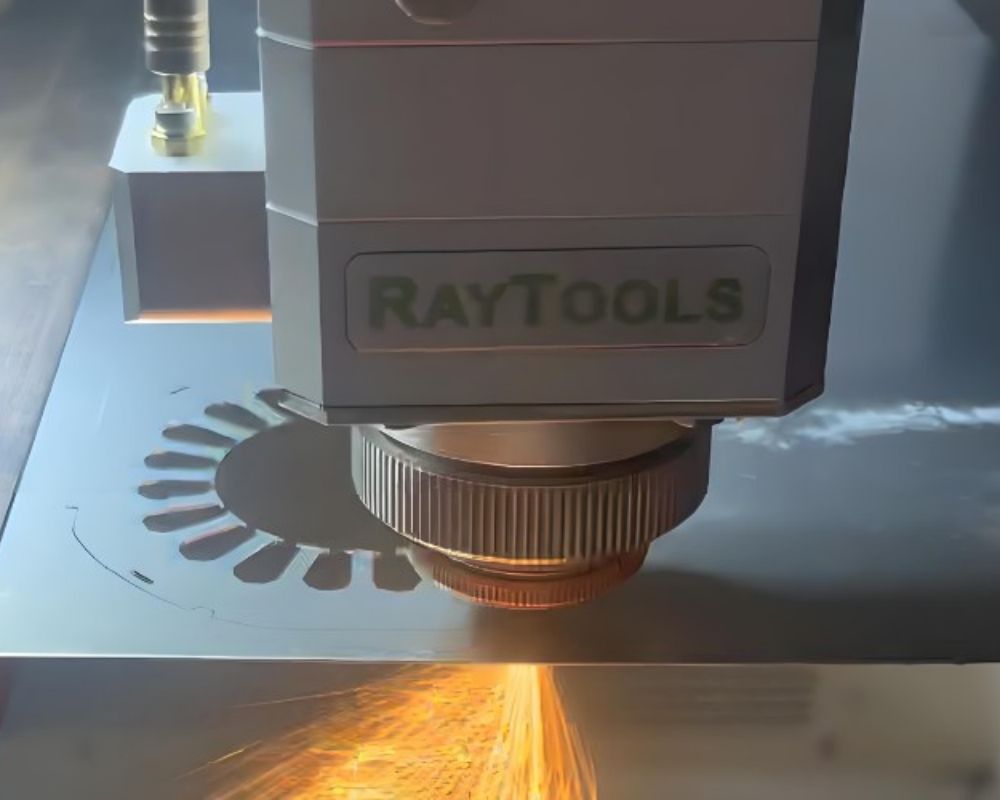

Our CRGO lamination stacks are made to the perfect shape and size. We use top-quality tools to stamp and laser-cut the CRGO laminations. Each piece fits together just right. We make each piece with very high precision and have a special process to remove any rough edges. This makes sure the stack is flat and even. A flat stack can be clamped together tightly, which helps to reduce vibrations and noise.

Strong and Lasting Power

Every single one of our CRGO laminations has a special coating for insulation. It stops unwanted power from flowing between the steel sheets. This keeps your core working well for years. We use a coating process with several steps. This creates a surface that is strong, can handle heat, and provides excellent insulation. First, we carefully prepare the surface. Then, we add a safe base layer. Finally, we add a special topcoat that is very good at stopping electricity. We check our quality very carefully and test the resistance between each layer. This proves that every part is fully insulated.

Made Just for You

We know that every project is different. We can make many types of CRGO lamination stacks just for you. We make common shapes like E-I Laminations and U-I Laminations. We also build round toroidal cores and custom shapes for your special needs. We are experts at making CRGO laminations for step-lap core designs. This special design helps reduce energy loss and also makes the core quieter and more stable.

The Heart of Your Machine: Our Great Materials

The core of any great transformer is the material it is made from. At Sino, we start with the very best steel to build your CRGO lamination stacks. For most machines that create or move power (at 50/60 Hz), our high-grade CRGO laminations give you the best mix of performance and cost.

CRGO: The Industry Standard CRGO laminations

give you the best mix of features. They can handle a lot of magnetic energy and have low energy loss. And they are available at a good price.

High Magnetic Capacity

CRGO steel can manage a lot of magnetic energy. This lets you build smaller cores that use less material compared to other types, like amorphous steel.

Strength and Durability

CRGO steel is a strong but flexible material. It is great for making large numbers of parts. The final core made from these CRGO laminations is tough and simple to put together.

Compared to Non-Oriented (NO) Electrical Steel

While NO steel is needed for spinning machines like motors, it loses much more energy than CRGO. For transformer cores where the magnetic field has a set path, using our CRGO laminations makes the machine much more efficient.

We get our Cold-Rolled Grain-Oriented Steel from the best makers in the world. We offer many CRGO Steel Grades. You can choose from standard grades like M3, M4, M5, and M6. For machines that need even more power, we offer Hi-B Steel. We can also provide Domain Refined CRGO steel.

The thickness of the steel matters a lot. We offer different choices for lamination thickness. You can get very thin sheets, like 0.23mm, 0.27mm, or 0.30mm. Thinner sheets are better at stopping certain types of energy loss.

We get our steel in large “mother coils”. We then cut them into smaller “slit coils” in our factory. This lets us make the exact size you need for your project.

Built to Handle Real-World Problems

Great CRGO laminations must perform well even in tough conditions. We design our products to solve the main problems of noise and heat. Our building process shows how much we care about quality.

How We Make a Quieter Core

We use smart design and careful manufacturing to reduce the humming sound that cores can make.

Choosing the Right Material: For equipment where noise is a big concern, we can use special grades of CRGO steel. These types of steel naturally make less noise.
Precise Shape and Smooth Edges: Our very precise measurements and our process for removing rough edges create a flat, even stack. This allows for tight clamping, which helps stop vibrations and noise.

Better Ways to Manage Heat

Cores create heat when they work, and our CRGO laminations are designed to handle that heat very well.

Moving Heat Out: Because our CRGO laminations are flat and smooth, they stack together very tightly. This helps heat flow out easily instead of getting trapped inside.
Long-Lasting Insulation: Our coatings are strong and will not break down after years of heating up and cooling down. This stops new paths for wasted energy from forming.
Helping Coolant to Flow: For transformers that use oil to cool down, we can make CRGO laminations with exact channels for cooling. Their smooth, clean edges make sure that the cooling oil can flow freely.

Our process begins at our slitting line, where we cut the steel into strips. Next, our cut-to-length line cuts these strips into individual sheets. For the final shape, we use a punch press or laser cutting tools. This gives us clean edges with very little rough metal, which is called a burr. We carefully remove any burrs to make sure every piece is smooth. Next, we stack the pieces. We can use methods like interlocking, welding, bonding, or riveting. A special method we use is the step-lap core. We also build mitred core and wound core types. After the core is built, we put the stack through a heating process called stress relief annealing. This process takes away any stress in the steel that was created during cutting. The finished CRGO lamination stack has perfectly lined-up layers. The different parts of the core, called the yoke and limbs, are now ready for the copper windings to be added.

Where Our Sino Stacks Shine

Our CRGO Lamination Stacks are used in many important machines that power our world. They are the key part inside many devices that use electricity and magnets. The most common use for our CRGO lamination stacks is inside transformer cores. They are perfect for:

Power Transformers
Distribution Transformers
Instrument Transformers

They are also used in other important areas:

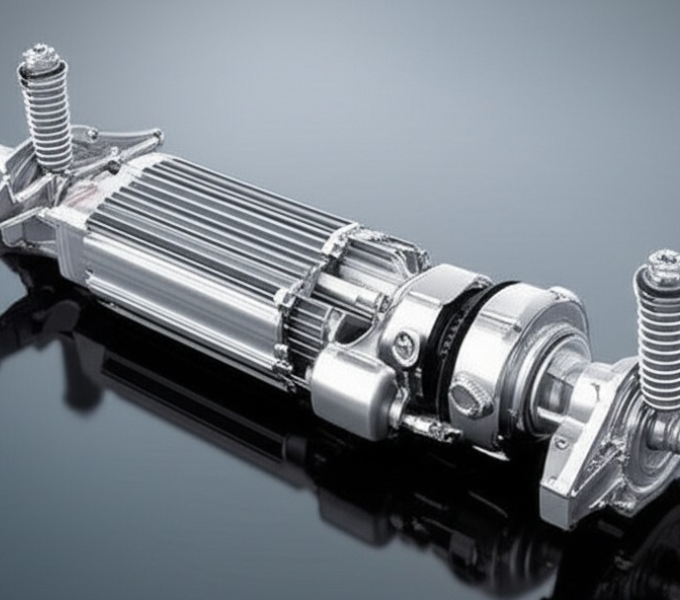

Electric Motors and Generators
Inductors and Chokes
Ballasts
Actuators and Sensors

Quality and Trust

Every Part

Quality You Can Trust: Our Standards

At Sino, quality comes first. We follow rules set by groups from all over the world. This makes sure that every CRGO lamination stack we sell is safe, strong, and works as promised. We follow standards like IEC 60404, ASTM A876, JIS C 2553, and IS 3024.

We perform many tests on the magnetic qualities of our steel. We use tools like an Epstein Frame Tester and a Single Sheet Tester (SST). These tools let us measure energy loss and check other important numbers. A power analyzer helps us see the full picture. This testing proves that our CRGO lamination stacks will give you the low energy loss we promise. We also test the insulation on the surface. This check makes sure the coating is working perfectly.

Partner with Sino for Top Performance

Choosing the right supplier for your CRGO laminations is a very important decision. It affects your product from start to finish. When you choose Sino’s carefully made CRGO lamination stacks, you get:

Great Performance: This means lower energy loss and better heat control. Your product will be more efficient, smaller, and more dependable.
Excellent Manufacturing: We use modern coatings and our special PDR technology to make our CRGO laminations as efficient as possible.
A Helpful Partner: We create real solutions for common problems like noise and heat.
Worldwide Dependability: We have a strong supply chain. This means you can count on us to deliver quality products on time.

Talk with our team of engineers. Let’s work together on your next project. We can help you build the equipment that will power a more efficient world. Contact us today to discover the Sino advantage.
